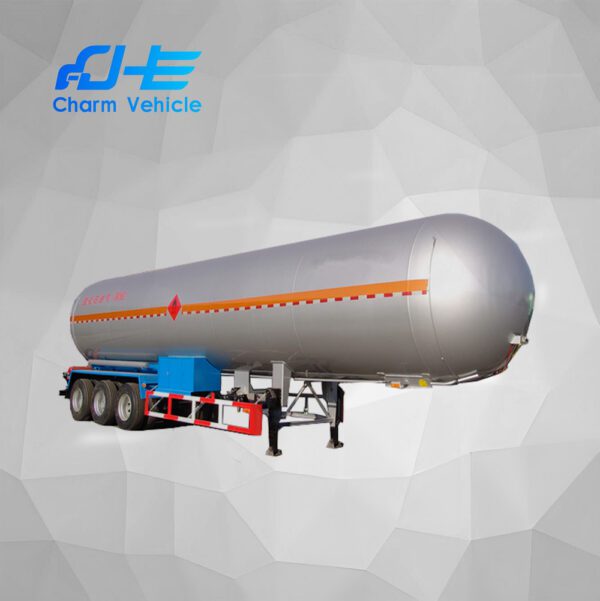

60.72CBM LPG TANK SEMI TRAILER
A LPG (Liquefied Petroleum Gas) tank semi-trailer is a specialized vehicle designed for transporting liquefied petroleum gas. These semi-trailers are used to safely and efficiently move LPG from production facilities to distribution centers or end-users.
Key Features of LPG Tank Semi-Trailers:
Cylindrical Tanks: The tanks are typically cylindrical to withstand the pressure required to keep LPG in its liquid form, ensuring safe transport.
Insulation: Many LPG tank semi-trailers are insulated to maintain low temperatures and prevent the gas from vaporizing during transport.
Safety Features: These trailers are equipped with safety systems, including pressure relief valves and emergency shut-off systems, to manage risks associated with transporting flammable materials.
Loading and Unloading Systems: LPG tank semi-trailers come with specialized equipment for efficient loading and unloading, such as pumps, hoses, and valves designed for handling pressurized gas.
Regulatory Compliance: They are built to meet stringent safety and regulatory standards for transporting hazardous materials.
LPG tank semi-trailers are essential in the logistics of liquefied petroleum gas, facilitating its safe delivery to various sectors, including residential, commercial, and industrial applications.
TOUGH VEHICLE, CHARMING RELIABILITY
- Product Customization
- Innovative & Flexible Design
- Reliable and Efficient Logistics Support
- Comprehensive After-sales Service
Description

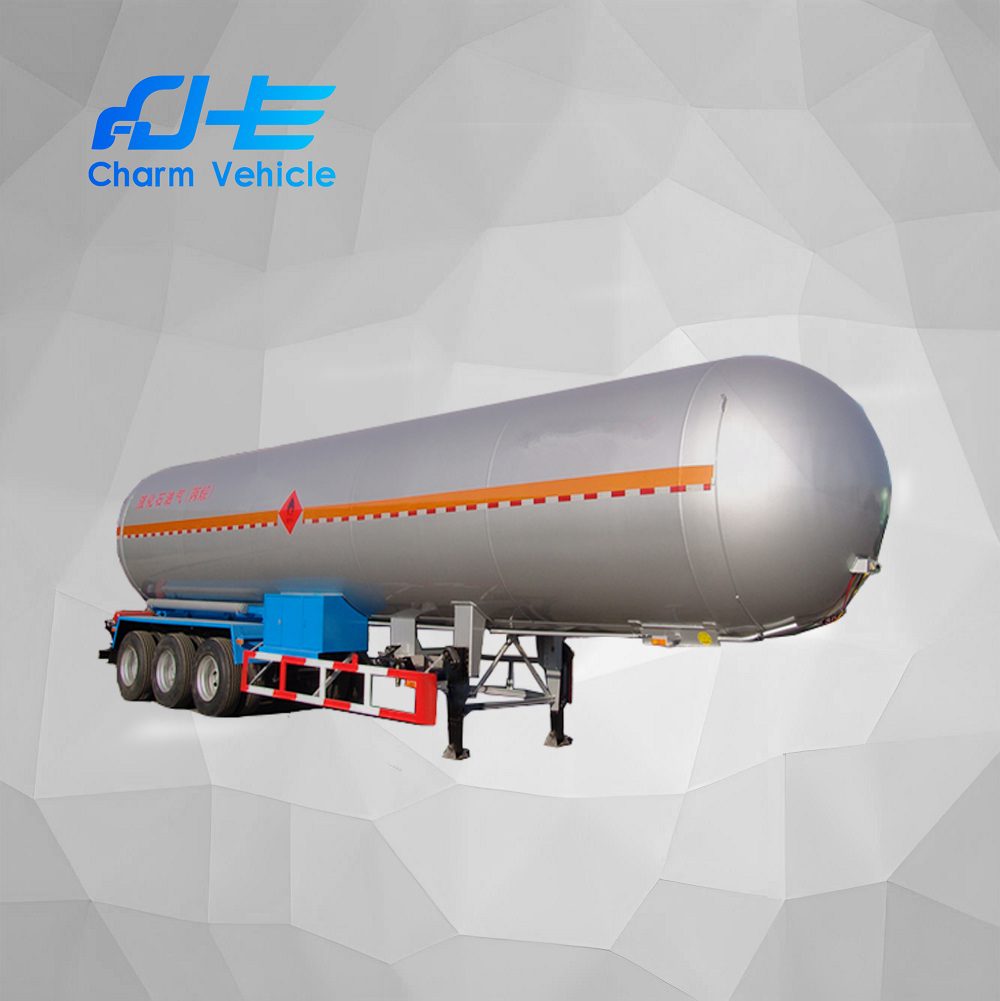

60.72CBM LPG TANK SEMI TRAILER
SPECIFICATION
A.Tank Configuration:
♦Front Head and Rear Head: 16MnDR, Ellipsoidal Head
♦Shell Body: 16Mndr.
♦Tank Shape: Round
♦Transport Medium: Propane of LPG
♦Max. Capacity: Max. for 60.72 M3
♦Design Pressure : 1.76Mpa
♦Working Pressure: ≤1.6MPa
♦Design Temperature: -40/50℃
♦Working Temperature: -40~50℃
♦ Water pressure test: 2.29MPa
♦ Air-leak test: 1.76MPa
♦ Liquid Density: 420 kg/m³
♦ Corrosion allowance: 1.0mm
♦Gross weight: 40000 kg
♦Curb weight:: 14500 kg
♦Rated loading capacity/Liquid weight: 25500 kg
B.Tank Accessories:
♦ Manhole Cover: 16MnIII, which at top of the tank
♦ Safety relief valve: 1 piece, Built-in and full lift, fixed at top of tank
♦ Airline/Vapor phase emergency cut off valve: 1 pieces（DN25）, at bottom of the tank，Hand wheel remote control
♦ Liquid phase emergency cutoff valve: 1 pieces（DN50）, at bottom of the tank，Handwheel remote control
♦ Emergency relief valve: 1 piece, fixed at the rear of tank
♦ Ball valve: 4 pieces, two for airline phase(DN25), the other two for liquid phase(DN50), fixed into the valve box, with quick-plug connections
♦ Handwheel switch: Two, supply the power to the emergency cutoff valve, which fixed into valve box
♦ Thermometer: 2 piece, fixed into valve box.
♦ Pressure Gauge: 2 piece, fixed into the valve box
♦ Liquid level meter: 1 piece, Float level gauge, at rear of tank
♦ Handing device: Bottom handing device, the size is DN50 and DN25 (2” and 1”), fixed into the valve box .
C.Trailer configuration:
♦Trailer Overall dimension: ~13360×2540×4000mm
♦Wheelbase: 7040+1310+1310mm
♦Front axle load（From Kingpin):16000 kg
♦Rear axle load (Central of the secondary axle): 24000 kg
♦Max. Trailer payload: 16000 kg
♦ Axles: 3– Axles, FUWA Axle (13T), origin China
♦ Suspension System: Mechanical suspension with Leaf Spring
10 pcs*90mm*13mm.
♦Leaf spring: -10/10/10
♦ ABS system: With ABS system
♦ Landing Gear: 28 ton two speed type, single side operation, Fixed to main frame, at both sides of the trailer
♦ Kingpin: 3.5″（90#）Kingpin bolted type, fixed to High Tensile Steel Kingpin Plate.
♦ Braking system: Dual line air brake system comprising of contact type coupling, brake chamber, emergency valve and air reservoir
♦ Electrical System: 24 Volt electrical system in accordance to Chinese standard, with 7 pin sockets for the tractor.
♦ Lighting: Standard front, side and rear. 24 volt system, 7 wires ISO socket. Red/brake, white/reverse and amber/direction indicator, LED tail lamp ，8pcs side marker lamp
♦ Side Fender: Steel, Manufacturer’s standard design.
♦ Rear Bumper: Steel, Manufacturer’s standard design.
♦ Mud guard: Steel, Manufacturer’s Standard design.
♦ Tire holder: 1 unit, manual operate spare tire holder
♦ Tyre Rim: 9.0022.5, Steel Rim 12 pcs.
♦ Tyre: 12R22.5, 12 pcs
♦ Tool box: 1 piece
♦ Valve box: Two pieces, at both side of tank
♦ Anti – Static System: Static electricity plate, and earth cable reel
♦ Fire Extinguisher Housing: 2 units, suitable for 8 kg’s fire extinguisher, installed at rear of vehicle
♦Shell Finish: Sandblasted to SA 2.5 and painted Epoxy zinc phosphate primer and polyurethane finish painting (anti-corrosion), with client’s Logo. Specification for the Logo provided by the client.
D.Upgrade configuration
♦ Electric pump
♦ Meter
♦ Air Nozzle
